Petroleum hydrometer
Brand : HKProduct origin : China
Delivery time : within 30 days after recieving full TT payment
Supply capacity : 1000pcs/month

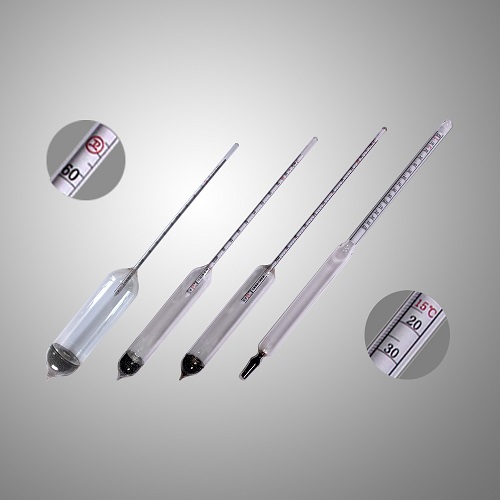

A hydrometer is an instrument that measures thespecific gravity (relative density) of liquids—the ratio of
the density of the liquid to the density of water. A hydrometer is usually made of glass, and consists of a
cylindrical stem and a bulb weighted with mercuryor lead shot to make it float upright.
| 一.Petroleum hydrometer with 25 pieces(SY-02) | |||||||||
| Division：0.2 kg/m3 Max length：335 mm Calibration temp.：20 ℃ Readout method：Lower edge Standard：SH/T0316 | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 600～620 | 6 | 700～720 | 11 | 800～820 | 16 | 900～920 | 21 | 1000～1020 |
| 2 | 620～640 | 7 | 720～740 | 12 | 820～840 | 17 | 920～940 | 22 | 1020～1040 |
| 3 | 640～660 | 8 | 740～760 | 13 | 840～860 | 18 | 940～960 | 23 | 1040～1060 |
| 4 | 660～680 | 9 | 760～780 | 14 | 860～880 | 19 | 960～980 | 24 | 1060～1080 |
| 5 | 680～700 | 10 | 780～800 | 15 | 880～900 | 20 | 980～1000 | 25 | 1080～1100 |
| 二.Second grade standard petroleum hydrometer with 10 pieces | |||||||||
| Division：0.5 kg/m3 Max length：350±10 mm Calibration temp.：20 ℃ Readout method：Lower edge | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 600～650 | 3 | 700～750 | 5 | 800～850 | 7 | 900～950 | 9 | 1000～1050 |
| 2 | 650～700 | 4 | 750～800 | 6 | 850～900 | 8 | 950～1000 | 10 | 1050～1100 |
| 三.Petroleum hydrometer with 10 pieces (SY-05/SY-10) | |||||||||
| Division：0.5/1.0 kg/m3 Max length：335/190 mm Calibration temp.：20 ℃ Readout method：Lower edge Standard：SH/T0316 | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 600～650 | 3 | 700～750 | 5 | 800～850 | 7 | 900～950 | 9 | 1000～1050 |
| 2 | 650～700 | 4 | 750～800 | 6 | 850～900 | 8 | 950～1000 | 10 | 1050～1100 |
| 四.Petroleum hydrometer with 9 pieces(SY-I) | |||||||||
| Division：0.5 kg/m3 Max length：300 mm Calibration temp.：20 ℃ Readout method：Upper edge | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 650～690 | 3 | 730～770 | 5 | 810～850 | 7 | 890～930 | 9 | 970～1010 |
| 2 | 690～730 | 4 | 770～810 | 6 | 850～890 | 8 | 930～970 | ||
| 五.Petroleum hydrometer with 6 pieces (SY-II) | |||||||||
| Division：1.0 kg/m3 Max length：200 mm Calibration temp.：20 ℃ Readout method：Upper edge | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 650～710 | 3 | 770～830 | 4 | 830～890 | 5 | 890～950 | 6 | 950～1010 |
| 2 | 710～770 | ||||||||
| 六.Lubricating oil air release value hydrometer | |||||||||
| Division：0.5 kg/m3 Full length：120±10 mm Calibration temp.：20 ℃ Readout method：Lower edge | |||||||||
| No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) | No. | Range(kg/m3) |
| 1 | 700～710 | 11 | 800～810 | 21 | 900～910 | 31 | 1000～1010 | 41 | 1100～1110 |
| 2 | 710～720 | 12 | 810～820 | 22 | 910～920 | 32 | 1010～1020 | 42 | 1110～1120 |
| 3 | 720～730 | 13 | 820～830 | 23 | 920～930 | 33 | 1020～1030 | 43 | 1120～1130 |
| 4 | 730～740 | 14 | 830～840 | 24 | 930～940 | 34 | 1030～1040 | 44 | 1130～1140 |
| 5 | 740～750 | 15 | 840～850 | 25 | 940～950 | 35 | 1040～1050 | 45 | 1140～1150 |
| 6 | 750～760 | 16 | 850～860 | 26 | 950～960 | 36 | 1050～1060 | 46 | 1150～1160 |
| 7 | 760～770 | 17 | 860～870 | 27 | 960～970 | 37 | 1060～1070 | 47 | 1160～1170 |
| 8 | 770～780 | 18 | 870～880 | 28 | 970～980 | 38 | 1070～1080 | 48 | 1170～1180 |
| 9 | 780～790 | 19 | 880～890 | 29 | 980～990 | 39 | 1080～1090 | 49 | 1180～1190 |
| 10 | 790～800 | 20 | 890～900 | 30 | 990～1000 | 40 | 1090～1100 | 50 | 1190～1200 |
| 七.LPG hydrometer (SH/T0221) | |||||||||
| Range(kg/m3) Division(kg/m3) Full length(mm) Temp.(℃) Readout Standard | |||||||||
| 500～650 1.0 400±10 mm 20 Lower edge SH/T0221 | |||||||||
| 500～580 1.0 330±10 mm 20 Lower edge SH/T0223 | |||||||||
| 570～650 1.0 330±10 mm 20 Lower edge SH/T0224 | |||||||||
